The logical traffic stream coupling can link four IT traffic streams. First, the traffic streams are analysed according to their parameters as standard. Then the logical link is made and the result is applied to the corresponding traffic stream. Depending on the type, the traffic stream is registered, extended or analysed for congestion.

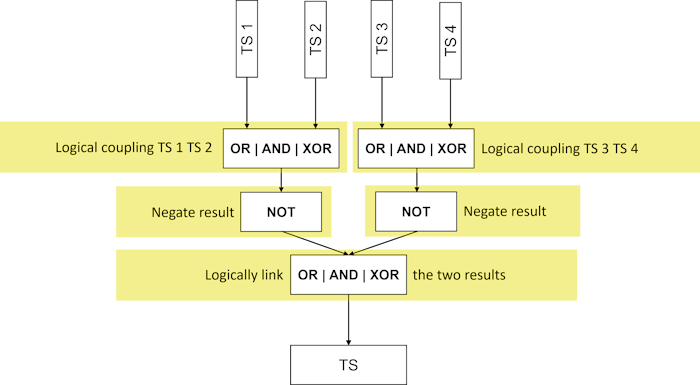

Figure 77: Schematic representation of logical traffic stream linking
The evaluation is based on the traffic stream waiting time. A traffic stream waiting time is only reset if the assigned traffic stream is green, all waiting times of the detectors assigned to the traffic stream have been reset or if the traffic stream is in the "inactive" state. If there is no way to reset the traffic stream waiting time, the (NOT) condition can no longer be fulfilled and the dependent traffic stream would never be registered again.
|
Display |
Identifier |
Values |
Description |
|
TS |
Traffic Stream |
|
IT traffic stream for which the link is defined. |
|
|
|
|
|
|
|
|
List |
All IT traffic streams. |
|
Logical type |
Link |
|
Effect of the link. |
|
|
|
|
|
|
|
|
Call |
Link applies to the call. |
|
|
|
Call and extension |
Link applies to the call and extension. |
|
|
|
Extension |
Link applies only to the extension. |
|
|
|
Spillback |
Link applies to the spillback. |
|
Condition |
Condition |
|
The conditions specify the linkage of the individual elements. |
|
|
|
|
|
|
|
|
[Empty] |
No link (can lead to wrong results). |
|
|
|
INAC |
No link (can lead to wrong results). |
|
|
|
NOT |
Inversion. |
|
|
|
OR |
Or link. |
|
|
|
AND |
And link. |
|
|
|
XOR |
Exclusive or-link. |
|
TS-GP |
Traffic Stream |
|
Traffic streams to be used (TS-IT 1 to TS-IT 4). |
|
|
|
|
|
|
|
|
List |
All traffic streams. |
|
Parameter |
from vs | plus version |
Comment |
|
Link |
6.2.5 |
Logical call of traffic streams is only made if the traffic stream to be called has red. |
|
Link |
6.2.6 |
For logical traffic stream links, the logical type "call and extension" now also works. |
