By specifying a second traffic stream, the authoritative traffic stream (forwarding from) transmits a request to the second, dependent traffic stream (forwarding to) at the parameterised time (forwarding type). Only requests that have been made to the authoritative traffic stream by detectors assigned to it are forwarded. All other requests such as green flag, transfer received, etc. are not forwarded. This coupling has no further effect.

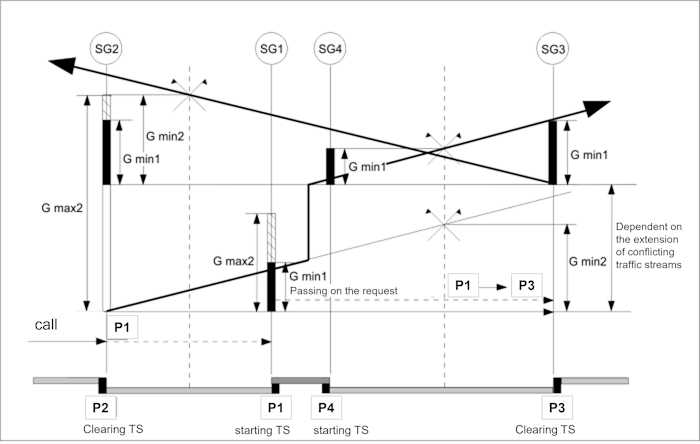

Figure 72: Example: Passing on a request
The forwarding of a request applies in particular to double pedestrian crossings. The request for the 2nd partial pedestrian crossing must be parameterised accordingly so that the second one is registered when the first ford turns green. The walking times are checked as an additional function of this parameterisation for the DPED traffic stream type.
|
Display |
Identifier |
Values |
Description |
|
TS_from |
Forwarded by traffic stream |
|
The first, decisive traffic stream must be specified, i.e., the one that is to trigger the forwarding of the request. |
|
|
|
|
|
|
|
|
List |
All traffic streams. |
|
TS_to |
Forward to traffic stream |
|
Specify the second, dependent traffic stream, i.e., the one to which the request is to be forwarded. |
|
|
|
|
|
|
|
|
List |
IT traffic streams only. |
|
as |
Forwarding type |
|
At which time the request is passed to the second traffic stream. |
|
|
|
|
|
|
|
|
tWdet |
As soon as the waiting time counter of a detector (twdet) of the decisive traffic stream starts, the request of the dependent traffic stream also starts. |
|
|
|
twTS |
As soon as the waiting time counter (twts) of the decisive traffic stream starts, the request of the dependent traffic stream also starts. |
|
|
|
TS on |
As soon as the decisive traffic stream receives the on command (state >= 8), the request of the dependent traffic stream also starts. |
|
|
|
TSgreen |
As soon as the decisive traffic stream switches to green (state = 10), the request of the dependent traffic stream also starts. |
|
|
|
TStgmin1 |
As soon as the decisive traffic stream has reached the minimum green time 1 (tg min1) (state = 11), the request of the dependent traffic stream also starts. |
|
Parameter |
from vs | plus version |
Comment |
|
Forward call |
6.2.5 |
The forwarding of the call is now correctly deleted even for traffic streams that are reported as flashing by the control unit. A passing on received in the green is deleted from the first green second. Thus, the traffic stream waiting time is also deleted in the first green second. |
